TempoTec Sonata HD TYPE C to 3.5MM Headphone Amplifier Adapter DAC for Android Phone PC MAC

Portable Headphone Amplifier USB Type C DAC Headphone Amp for Android/Windows/MacOSX System Smartphone Laptop

Sonata HD. Use the CS42L42 Dac chip

Specification:

S/N Ratio: 114dB.
Dynamic Range:114dB.
Output Power: 2*60 mW /32 Ohms.
Resolution 16/24bit, 44.1/48/88.2/96/176.4/192KHz.
Working Current: 50 mA.
Digital Port:Micro USB TYPE-C.
Accessories: Type C to USB A adapter.
Support OS: Windows / MacOSX /Android.
Analog Port: 3.5mm headphone Jack, Headset mic supported.

USB Type-C to 3.5mm Hi-Res audio converter.

Connect your phone digitally Built-in high quality DAC chip.Fully enhance the quality of mobile phones while providing excellent headset drive capability. Support the global output of mobile phones, in cooperation with p professional player software to achieve 24bit-192KHZ HD capability.

Three modes for better hearing experience.

Three optional firmware modes are available: Calling priority firmware, Tone quality priority firmware and Pure music mode firmware. Can be upgraded for the better fit of various mobile phones.

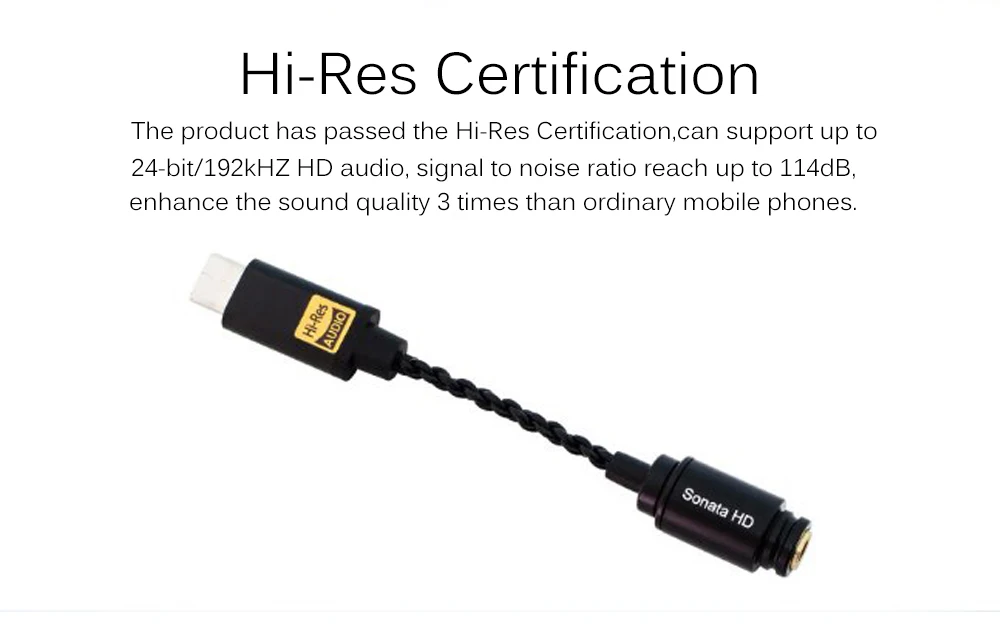

Hi-Res Certificated.

The product has passed the Hi-Res Certification, can support up to 24-bit/192kHz HD audio, signal to noise ratio reach up to 114dB,enhance the sound quality 3 times than ordinary mobile phones.

99.99% single crystal pure copper cable.

Using 4-Core 6N single crystal copper Hi-Fi headphone cable,offer high quality transmission and also durable.

Packing Included:

1 * Sonata HD
1 * Adapter(female type-c to maleUSB-A)
1 * Hi-Res logo sticker

it doesn’t support phones with microusb port

Connection Steps

First, contect the earphone and Sonata HD

Secondly, connect to smart mobile phone or computer

This order cannot be reversed

Please Note:

1. Due to the different production batches, the appearance of the Adapter is also different, but the function is the same.

2. We deliver goods randomly and do not accept the specified appearance .

Thank you in advance for your understanding

Buyer Photo Display

Sonata HD firmware update instruction

1. Remove any other redundant USB devices on your computer, such as a removable hard drive. Connect the Sonata HD cable to the USB adapter and plug it into the USB port of your computer.

2. Observe that the device manager in the operating system has changed with new hardware (different system display contents may be vary).

3. Run the setup program and select “Yes”.

4. In the next program window, enter 22e1 e202 (ignore the check option) and click the Write EEPROM button.

5. Notice! Do not click the OK button on the new pop-up window of the program (the above message reminds us to re-plug the Sonata HD once).

6. Follow the prompts to remove the Sonata HD from your computer and plug it back in to the same USB port.

7. Observe that there is a change in the new hardware in the device manager in the operating system.

8. Confirm that the new hardware is fully recognized by the system, then you can click the OK button on the program pop-up window.

9. The update starts and the program prompts Write to EEPROM OK after the progress bar is completed! You’re done.

10. Click OK, click Exit to exit, and unplug the Sonata HD to use.

FAQ

1.Except for Qualcomm processors, do other phones support processors?

As long as it supports the OTG function and has a USB debugging switch, it can be used.

2.What it support ?

Under the call priority (SONATA HD A) and sound quality priority (SONATA HD C) modes, music, voice calls, K brother, and short and long videos can be supported. The alcohol sound mode (SONATA HD D) requires the sample rate of the playback file. Higher, other applications except lossless music may appear distorted or popped.

3.Except for Qualcomm processors, do other phones support processors?

As long as it supports the OTG function and has a USB debugging switch, it can be used.

4.Will the speed of power consumption change?

The reverse charging of the mobile phone to the op amp circuit of the amp consumes a little more power than the ordinary adapter; according to tests, under normal conditions, the battery consumes about 2% more power per hour than the ordinary TYPE-C headset adapter.

5.Why can’t I recognize the hardware when I listen to the audio mode?

Regardless of whether it is connected to a PC or a mobile phone, you need to connect the phone in advance, and then connect to the PC or mobile phone, otherwise it will not be recognized by the system.

6.What is the difference between the three listening modes?

【SONATA HD A】The factory mode is call priority, it make the Sonata HD cable priority to handle the calling function.And all aspects are more balanced.

【SONATA HD C】Sound quality priority supports the global settings of most mobile phones.it can make the Sonata HD cable priority to handle the sound.

【SONATA HD D】Alcohol mode is more suitable for lossless music or for PC sound card.it can maximize the Sonata HD cable to enhance the sound but the call function will not be available in this mode.

7. Can I connect my computer as a sound card?

This is a mobile phone amp. The improvement for mobile phones is obvious. The problem with making a gaming sound card is that it does not support the headset function after connecting to a PC, so it is not recommended.

8.Why does the volume debugging button fail when my phone uses a Haibei player?

This is due to the limitation of mobile application permissions. Take Xiaomi mobile phone as an example, you can change the “Show floating window” option in the permission management of Haibei player to “Allow”. Most Android smartphones have this function.

9.it doesn’t come with micro USB to type C adapter right?

No, there is only an Adapter for pc

TempoTec

TempoTec Corp. is established by a group of audiophiles. We’ve been pursuing the better sound quality, and the more convenient user experience.

Our multinational team is integrated the experts from China, Taiwan, Korea & Germany, such as “Music has no boundaries”. All these best experts have more than 20 years of audio system development experience. From product plan, technical research, product application to user interface, we try hard to present the finest, the most friendly products, to share our fantastic experience with all audiophiles.

As new technology leads, we believe there will be more music played, transmitted, streamed from PC , mobile phones, and more portable devices. Accuracy is the uniqueness in the digital world, needs accumulating technologies.

However, the final format of music is always analog. So besides of the advanced digital audio processing technology, we also listen to the feedback of users and discover the potential needs, create new product with user-oriented, and share fine listening experience with music lovers. We expectation ourselves the reduction of true sound. Technology and humanity, is the soul and goal of TempoTec.

Brand Name:
TEMPOTEC
Built-in Battery:
No
Certification:
NONE
Recommended Headphone Maximum Impedance:
81-100 Ohm
Output Type:
LINE OUT (AUDIO OUT)
Origin:
CN(Origin)
Input Type:
USB
DSD (Direct Stream Digital):
No
Body Material:
Aluminum
Package:
YES
Channels:
2 (2.0)
Output Power:
60mw/32Ohm
Dimensions (WxHxD):
80mm*10mm*10mm
Model Number:
Sonata HD
Operational Amplifier Chips Model:
CS42L42
Signal To Noise Ratio:
113
PCM:
Yes
Bluetooth:
No
DAC Model:
CS42L42
Type:
Mini Amplifier
WIFI:
No
PCM Decoding:
24Bit 192Khz
ASIO:
SUPPORT
Change FW:
Three FW Can be changed
Sale way:
Wholesale , retail-sale , Drop shipping, Dropshipping
code:
SHD53B
